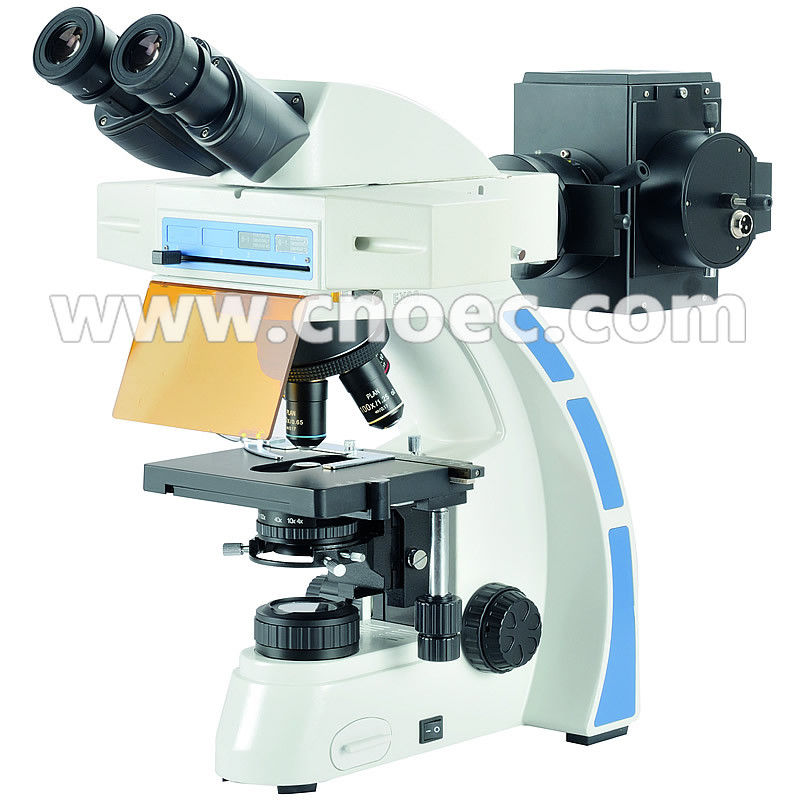

| A16.0907-B Fluorescent Microscope |
| Head | Binocular, 30° Inclined, Interpupillary Distance 50-75mm |
| Eyepiece | PL10x/20mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree |

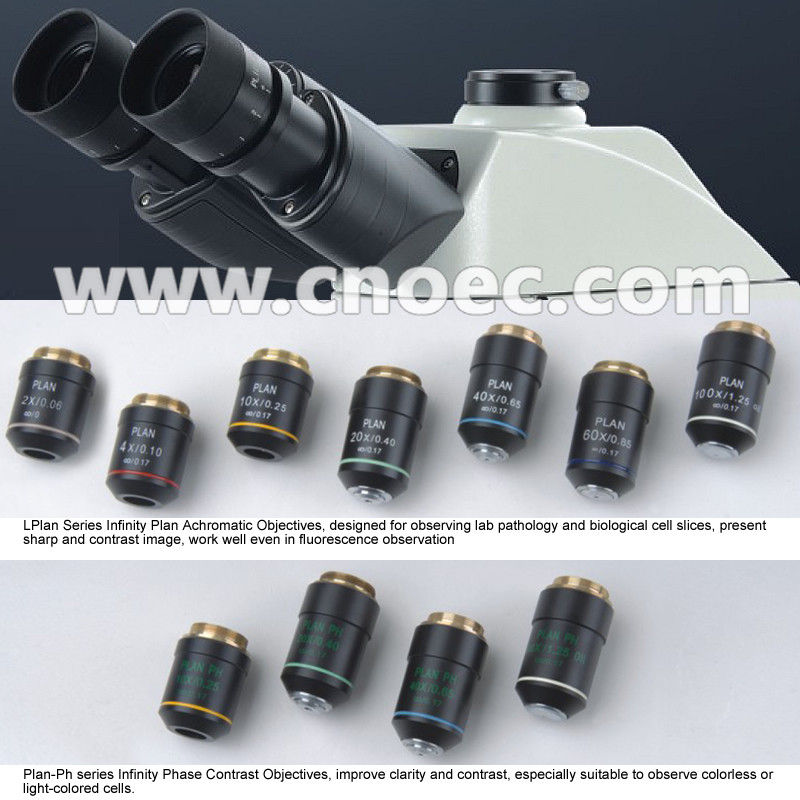

| Objective | Infinity Plan Achromatic 10x/0.25, 20x/0.50, 40x/0.65, 100x/1.25 |
| Nosepiece | Backward Quadruple |
| Focusing | Low Position Coaxial Coarse & Fine Focusing Knob, with Safty Limitation and Tension Adjustment Ring. Coarse Range 25mm, Fine Precision 0.002mm |
| Working Stage | Double Layer Mechanical Stage 150*140mm, Moving Range 76*50mm, Precision 0.1mm |

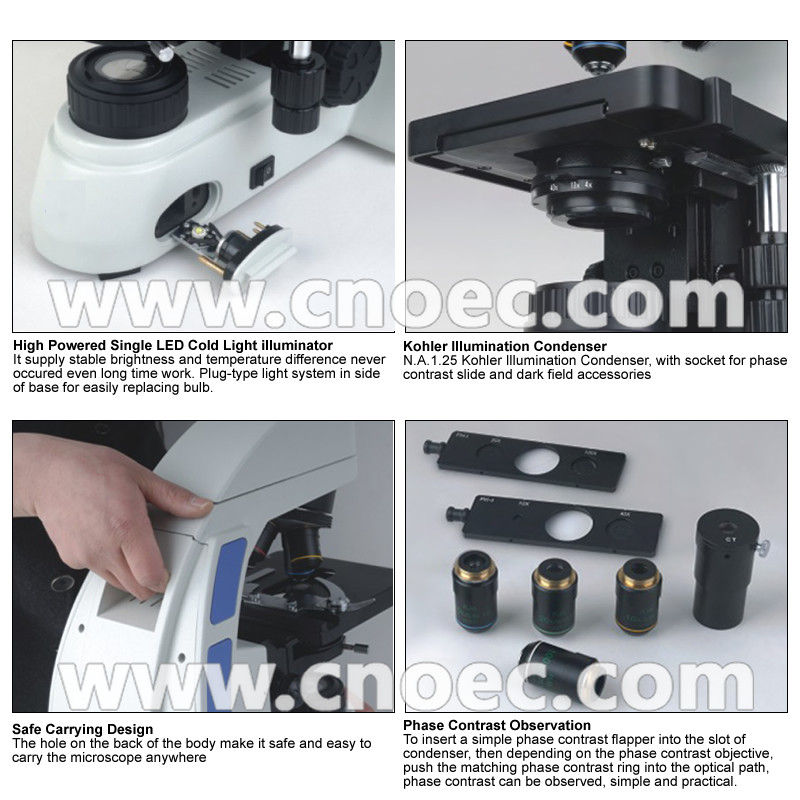

| Condenser | Kohler N.A. 1.25, with Socket for Phase Contrast and Dark Field Slides, Center Fixed |
| Filter | Blue, Dia.45 |
| Light Source | 6V30W Halogen , Intensity Adjustable, Center Fixed, including 6V30W Bulbs 2 pcs |
| Fluorescent | Reflected Fluorescent Illuminator, 100W Lamp House, Power Unit |
| Fluorescent Filter B,G |
| Power | 100~240V Wide Range Power Supply |
| A16.0907-B Fluorescent Microscope Optional Accessories |
| Head | Trinocular, 30° Inclined, Interpupillary Distance 50-75mm | A53.0907-T30R |
| Eyepiece | PL10x/22mm, Wide Field, High Eye Point, Diopter Adjustable +/-5 Degree | A51.0904-1022T |
| Nosepiece | Backward Quintuple | A54.0930-BS5 |
| Fluorescent | Fluorescent Filter UV | A56.0935-XYY |
| Adapter | C-Mount 1.0x, Focus Adjustable | A55.0925-1 |
| C-Mount 0.5x, Focus Adjustable , for 1/2 CCD | A55.0925-1/2 |
| C-Mount 0.35x, Focus Adjustable, for 1/3 CCD | A55.0925-1/3 |
| Photo Adapter with PK or MD mount, with 3.2x Photo Eyepiece | A55.0901-1 |
| Professional Photo C Mount, with Photo Eyepiece | A55.0910 |
