Zoom Stereo Optical Microscope With Tilting Head , 0.8 - 8x , A23.1005

Name: Zoom Stereo Optical Microscope With Tilting Head 08 8x A231005
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Wholesale Zoom Stereo Optical Microscope With Tilting Head , 0.8 - 8x , A23.1005 from china suppliers

Place of Origin : China

Brand Name : CNOEC, OPTO-EDU

Certification : CE

Model Number : A23.1005

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Packaging Details : Carton Packing, For Export Transportation

Delivery Time : 5~20 Days

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Applications : Industry|Medical

Illumination : LED

Theory : Stereo Microscope

Contact Now

Zoom Stereo Optical Microscope With Tilting Head , 0.8 - 8x , A23.1005

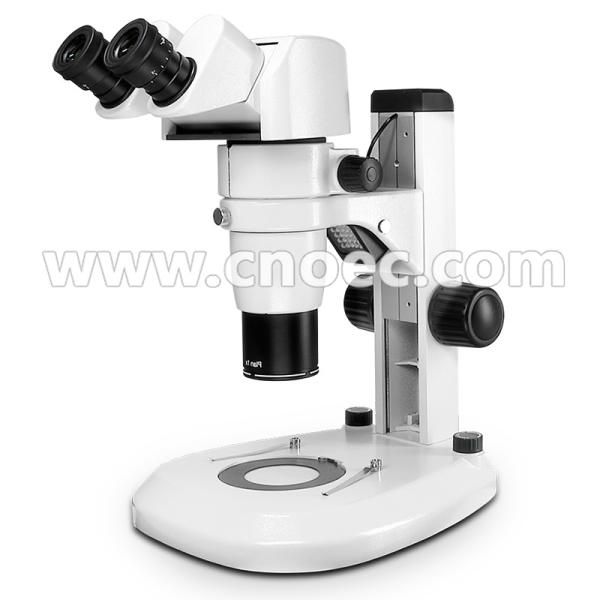

A23.1005 Zoom Stereo Microscope With Tilting Head , the newest advanced zoom stereo microscope, can be used extensively for scientific research, industry, biological and medical field.

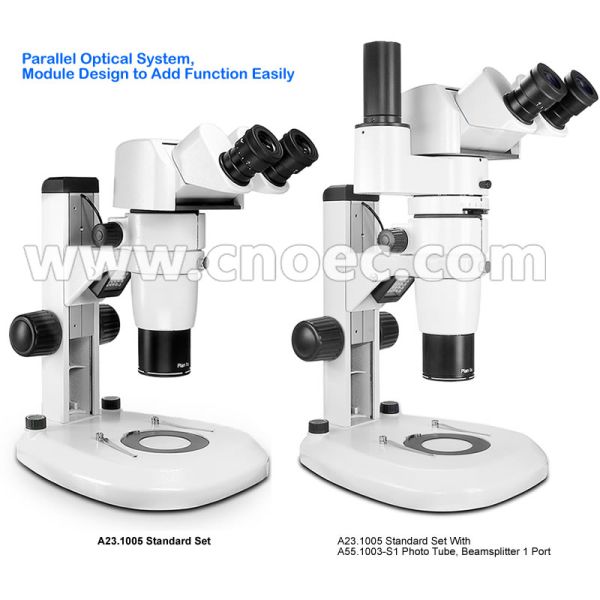

--Parallel Optical System, Module Design to Add Function Easily

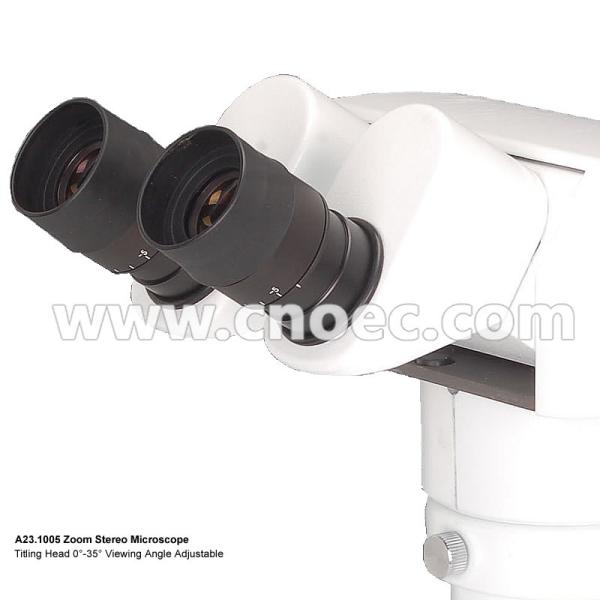

--Tilting Head 0°-35° Viewing Angle Adjustable for User
--Large Zoom Ratio Up to 1:10

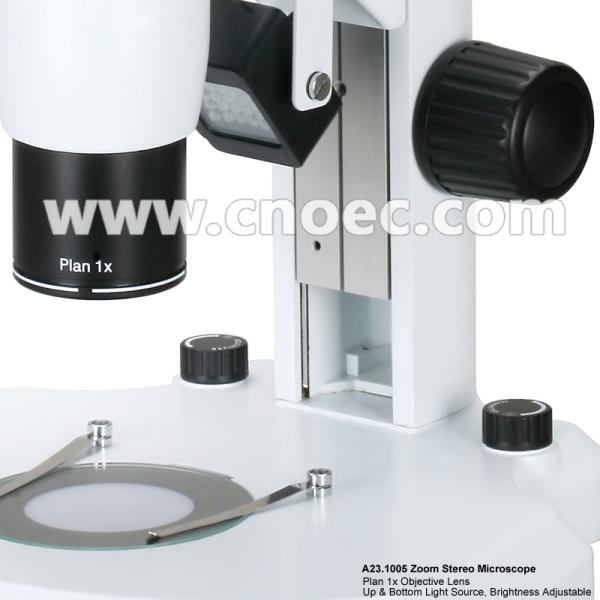

--Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
--Complete Accessories Include Polarizing, Dark Field, Fluorescent Attachment
--Plan Apochromatic Objective 0.5x Optional

A23.1005 Zoom Stereo Microscope With Tilting Head , the newest advanced zoom stereo microscope, can be used extensively for scientific research, industry, biological and medical field.

A23.1005 Zoom Stereo Microscope, With Tilting head		A	B	C
Optical System	Parallel Optical System, Module Design to Add Function Easily
Head	Tilting Head 0°-35° Viewing Angle Adjustable for User
Eyepiece	Extra Wide Field Eyepiece EWF10x/22mm
Zoom Body	0.8~5.0x, Zoom Ratio 1:6	o
	0.8~6.4x, Zoom Ratio 1:8		o
	0.8~8.0x, Zoom Ratio 1:10			o
Auxiliary Lens	Plan Achromatic Lens 1.0x
Working Distance	78mm
Focusing	Coarse Focusing Konb, Range 105mm	o	o
	Coaxial Coarse & Fine Focusing Knob, Fine Division 0.015mm, Coarse Stroke 38.4mm/Rotation, Fine Stroke 1.5mm/Rotation, Moving Range 105mm			o
Illumination	Transmit & Reflect LED Illumination, Brightness Adjustable, Working Life 6000 Hours
A23.1005 Zoom Stereo Microscope, With Tilting head		Cata. No.
Eyepiece	WF15x/16mm	A51.1027-1516
	WF20x/12mm	A51.1027-2012
	WF30x	A51.1027-30
Auxiliary Lens	Plan Apochromatic Lens 0.5x	A52.1023-05A
	Plan Achromatic Lens 1.0x	A52.1023-10
	Plan Achromatic Lens 2.0x	A52.1023-20
	Achromatic Lens 0.3x	A52.1023-03
	Achromatic Lens 0.5x	A52.1023-05
Illumination	Coaxial Illumination Set: --Cold Light Power Supplier, --Dual Light Guide, --Coaxial Episcopic Illuminator, --Iris Diaphragm	A56.1021
	Iris Diaphragm	A56.1021-2
Working Stage	Temperature Control Stage	A54.1004
	Movable Working Stage	A54.1007
Stand Click to See	Universal Table Stand	A54.1011
		A54.1012
		A54.1013
		A54.1014
	Track Stand, Transmit & Reflect Light Source With Coarse & Fine Focusing Optional, Model -F, Like A54.1019-F	A54.1019
		A54.1020
		A54.1021
Fluorescent	EPI-Fluorescent Attachment For Stereo Microscope	A5F.1020
Dark Field	Dark Field Attachment For Stereo Microscope	A5D.1001
Polarizing	Simple Polarizing Attachment For Stereo Microscope	A5P.1003
Adapter	Photo Tube, Beamsplitter 1 Port	A55.1003-S1
	Photo Tube, Beamsplitter 2 Port	A55.1003-S2
	Photo Adapter, 2.0x, For Nikon or Canon DIgital SLR Camera	A55.1020-2X
	C-mount 0.5x	A55.1021-05
	C-mount 1.0x	A55.1021-10
